Tuwaiq Inspecta HD 620

hand held metal detectors ksa and gulf

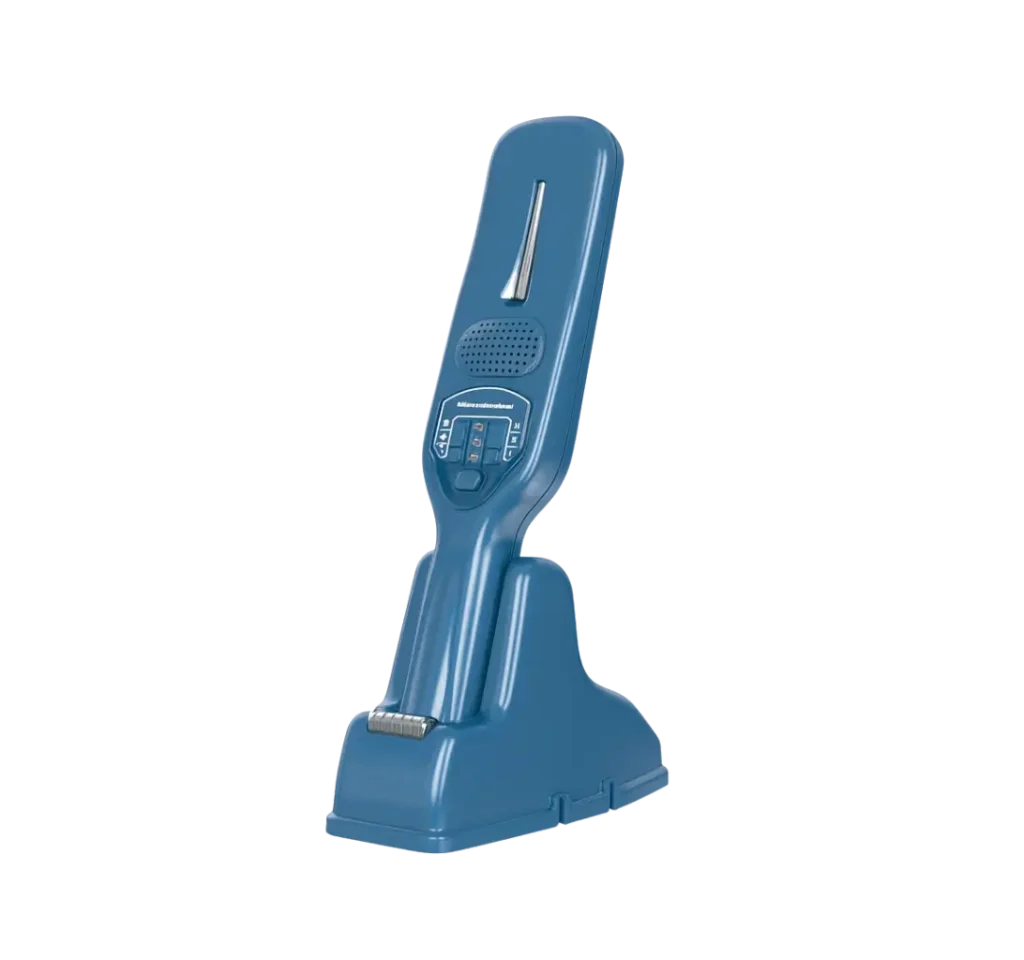

Tuwaiq Inspecta™ HD620

  • Metal detection panel
  • Lanyard hole
  • LED Indicator Light
  • Sensitivity adjustment (L: low sensitivity M: medium sensitivity H: high sensitivity)
  • Indicator light (Red: metal alarm; Yellow: low power indicator; Green: power indicator)
  • Alarm mode adjustment (🔔 ring bell, 🔇 silence, 🕭 vibration)
  • Power switch
  • Handle
  • Label position
  • 5 Sensitivity adjusting hole
  • The speaker hole
Download Product Data Sheet

The Tuwaiq Inspecta HD 620 is a high-sensitivity handheld metal detector engineered for dependable, accurate, and efficient security screening. Compact yet powerful, it delivers fast and precise detection of metallic threats—from weapons and contraband to concealed metal objects—ensuring reliable performance in demanding environments.

As part of Tuwaiq’s range of handheld metal detectors, the HD 620 features an ergonomic design, rapid response time, and ease of operation, making it ideal for security checkpoints, public events, airports, schools, government buildings, stadiums, transportation hubs, and other high-security facilities.

Standard Features:

Product Features:

  • High sensitivity
  • LED indicator light shows metal strength
  • Convenient and easy operating, no need to adjust
  • Power saving, can work for 40 hours continuously
  • There are automatic continuous alarm once battery is low
  • There are voice indicator for power on and off
  • There is a switch button for sound, LED and vibration
Basic Parameters:
  • Dimensions: L360mm × W80mm × H41mm
  • Power supply: 2*AA batteries (1.5V one-time or 1.2V rechargeable)
  • Working temperature: 10℃ ~ +65℃
  • Humidity: 0~95%
  • Alarm signal
  • Power consumption: maximum 270MW
  • Working frequency: 22KHZ
  • Standby current: <5MA
  • Working voltage: 2.5~9V
Detuction Distance:
  • Pin: 30~60mm
  • Type 64 pistol: 150mm
  • Six-inch dagger: 160mm
  • Diameter 20mm steel ball: 90mm

FAQ

ask us
anything

The Tuwaiq Inspecta™ HD 620 is a high-sensitivity handheld metal detector designed for fast and accurate detection of concealed metallic threats including weapons, contraband, and prohibited metal objects at security checkpoints across Saudi Arabia and the GCC, including airports, government buildings, schools, stadiums, and public events.

The Inspecta™ HD 620 can detect a wide range of metallic objects including pistols, daggers, blades, steel objects, and other concealed metal items — making it a reliable secondary screening tool for security personnel at any checkpoint.

The Inspecta™ HD 620 is built for extended use, operating continuously for up to 40 hours on standard AA batteries. It also features an automatic low battery alarm so security operators are always aware of the power status during screening operations.

Yes. The Inspecta™ HD 620 offers three alarm modes — audible alert, silent mode, and vibration — giving security operators the flexibility to choose the most appropriate alert method depending on the environment and operational requirements.

Yes. The Inspecta™ HD 620 features an ergonomic design, three sensitivity levels, a clear LED indicator light that shows metal strength, and simple one-button operation — making it easy to use for security personnel in fast-paced, high-throughput screening environments.

Fill out the form on this page to download the Inspecta™ HD 620 product datasheet, or contact our team directly at info@tuwaiqtechnology.com — we will help you find the right handheld metal detector for your security screening needs.
