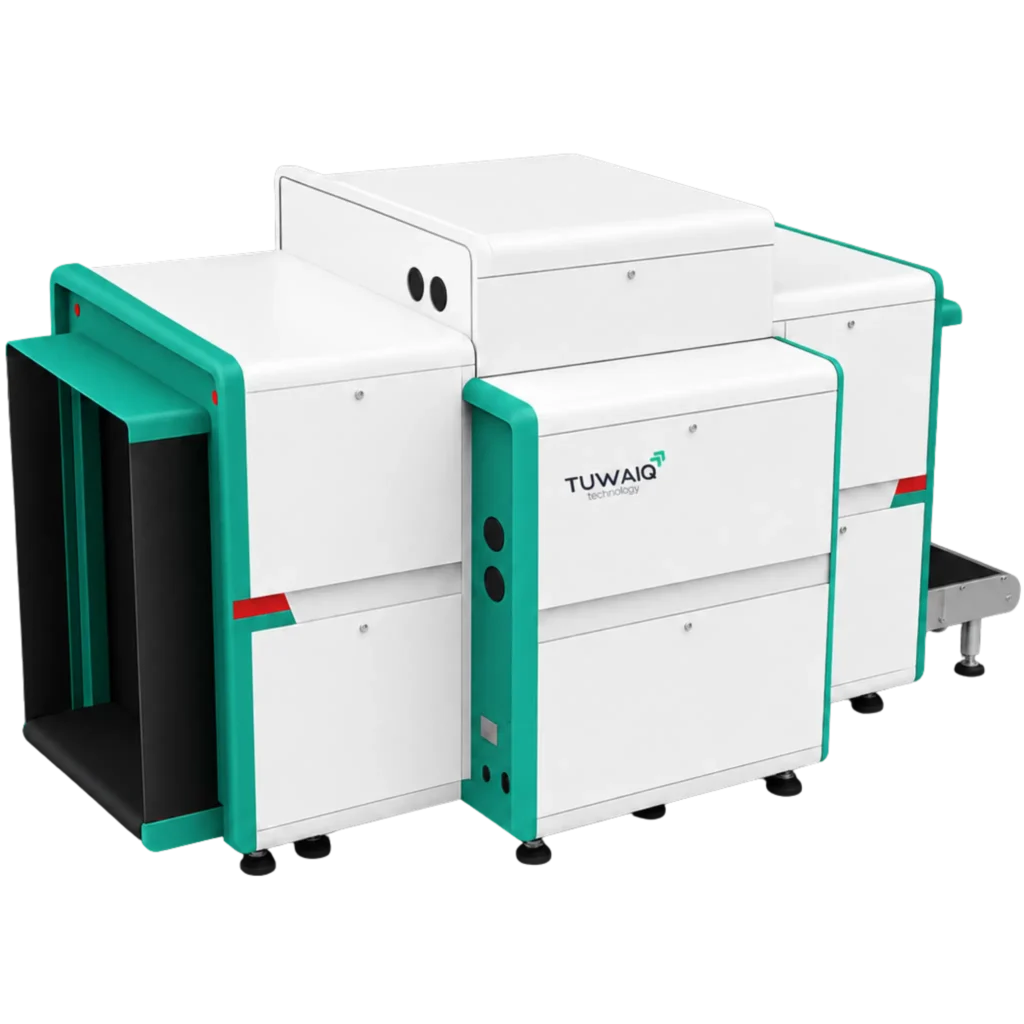

Tuwaiq Inspecta™ 1010D - Large Tunnel Dual View X-Ray Baggage Scanner
Smarter Screening for High-Volume Cargo Operations
Airports & Customs
Efficient inspection of oversized baggage, large parcels, freight, and commercial shipments at high-throughput checkpoints.
Ports & Logistics Centres
Reliable cargo screening for seaports, cargo terminals, distribution centres, and logistics facilities.
Warehouses & Border Checkpoints
Designed for warehouses, border crossings, government facilities, and critical sites handling bulky packages and large consignments.
INSPECTA™ 1010D Technical Specifications
Core performance, workstation, electrical and environmental data taken directly from the premium product data sheet.
General Specifications
| Tunnel size | 1000 mm (W) x 1000 mm (H) |
|---|---|
| System dimensions | 3800 mm (L) x 1700 mm (W) x 2000 mm (H) |
| Operator desk | 1000 mm (L) × 750 mm (W) × 1200 mm (H) |
| Conveyor height | 300 mm |
| Conveyor speed | 0.2 / 0.3 / 0.4 m/s, adjustable |
| Conveyor load | Maximum 200 kg |
X-Ray Generator & Image Performance
| Generators | 2 | Dual View |
|---|---|
| Voltage / current | 160 kV / 1.0 mA, adjustable |
| Wire resolution | 38 AWG standard; 40 AWG typical |
| Steel penetration | 32 mm standard; 34 mm typical |
| Spatial resolution | 0.8 mm |
| Cooling / duty | Oil cooling / continuous operation |
| Beam direction | Diagonally upward |
Workstation & Display
| Operating system | Windows 10 IoT Enterprise 64-bit |
|---|---|
| Processor | 12th Gen Intel Core i5 |
| Memory / storage | 8 GB RAM / 512 GB storage |
| Display | 24″ Dual Monitor, 1920 x 1080 @ 120 Hz |
| Graphics | NVIDIA GeForce GTX 1660 SUPER |
Electrical, Safety & Environment
| Power supply | AC 220 V (-15% to +10%) or AC 110 V (-15% to +10%), 50/60 Hz (±3 Hz) |
|---|---|
| Consumption | – |
| Noise level | 60 dB(A), measured 1000 mm from device surface |
| External dose | Less than 0.5 µSv/h at 100 mm |
| Film safety | ASA / ISO 1600 |
| Operating temperature | 0° to 40° C |
| Storage temperature | -20° to 50° C |
Configuration note: Product weight and dimensions may vary depending on the selected configuration and customization requirements.
Standard Capability with Flexible Expansion
Configure the system around site operations, training requirements, workstation needs and environmental conditions.
Standard Features
- Color and black-and-white imaging
- Organic and metal stripping
- Organic and metal stripping+
- High / low / super penetration
- Negative and absorptivity tools
- Super and edge enhancement
- Z-effective suspect enhancement
- 64× zoom and 32× magnifier
- Automatic image archiving and recall
- Bi-directional continuous scanning
- Power-on self-test and diagnostics
- Baggage counter and user logs
- Organic, non-penetration and explosive alarms
- 6-color material classification
- Entry and exit roller tables
- Energy-saving automatic baggage detection Start/Stop
Optional Packages
- AI prohibited-item recognition package
- Barcode and package tracking
- Threat Image Projection training
- HCP / RMS network management
- Dual-monitor operator workstation
- Remote workstation configuration
- Short or long conveyor extensions
- Mobility kit or roller bed
- Environmental kit and tunnel covers
- UPS and power-conditioning package
- Custom paint and site branding
- Radiation meter
- Test kit
- Touch-screen display
RELATED PRODUCTS
FAQ
ask us
anything
What is the Tuwaiq Inspecta™ 1010D dual-view X-ray baggage scanner used for?
The Tuwaiq Inspecta™ 1010D is a large tunnel dual-view X-ray baggage scanner designed for comprehensive, blind-spot-free inspection of oversized baggage and cargo at high-security and high-risk facilities across Saudi Arabia and the GCC, including airports, customs, seaports, logistics hubs, and government facilities.

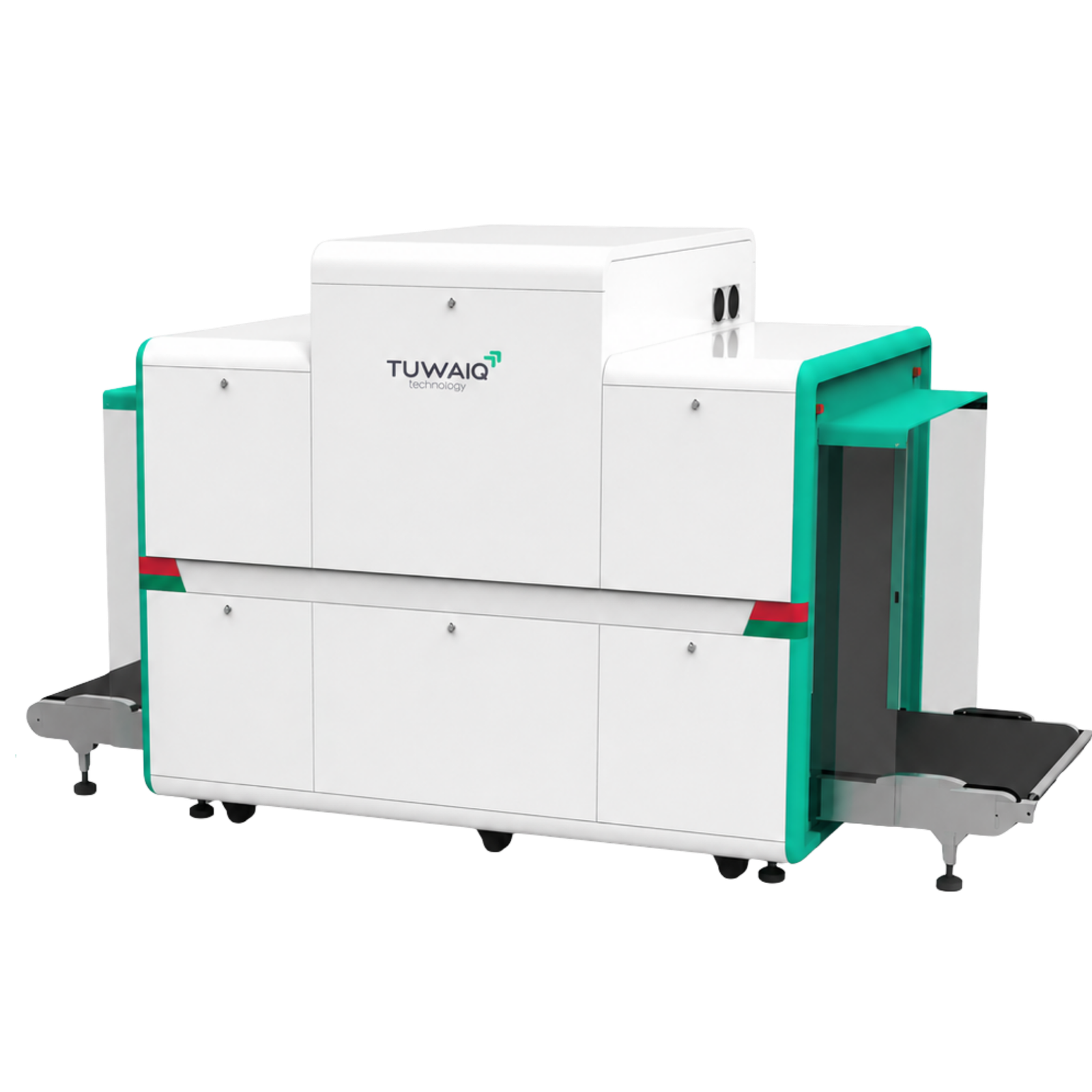

What is the difference between the Inspecta™ 1010 and the Inspecta™ 1010D?
The Inspecta™ 1010D features dual-view imaging technology with two X-ray sources positioned at different angles, capturing both horizontal and vertical images simultaneously. This provides a more complete, blind-spot-free view of each scanned item compared to the single-view Inspecta™ 1010.
Which facilities benefit most from the Inspecta™ 1010D large tunnel dual-view scanner?
The Inspecta™ 1010D is widely deployed in airports, customs checkpoints, seaports, railway freight stations, logistics hubs, bonded warehouses, government facilities, embassies, and large-scale event venues where thorough inspection of large and complex cargo is critical.
Can the Inspecta™ 1010D be integrated with existing security management systems?
The Inspecta™ 1010D supports centralized data management, remote monitoring, and integration with security platforms including HCP and RMS systems, making it easy to connect with your facility’s existing security infrastructure.
How can I get the Inspecta™ 1010D dual-view X-ray baggage scanner for my facility?
Fill out the form on this page to download the Inspecta™ 1010D product datasheet, or contact our team directly at info@tuwaiqtechnology.com — we will help you find the right large tunnel security screening solution for your facility.
